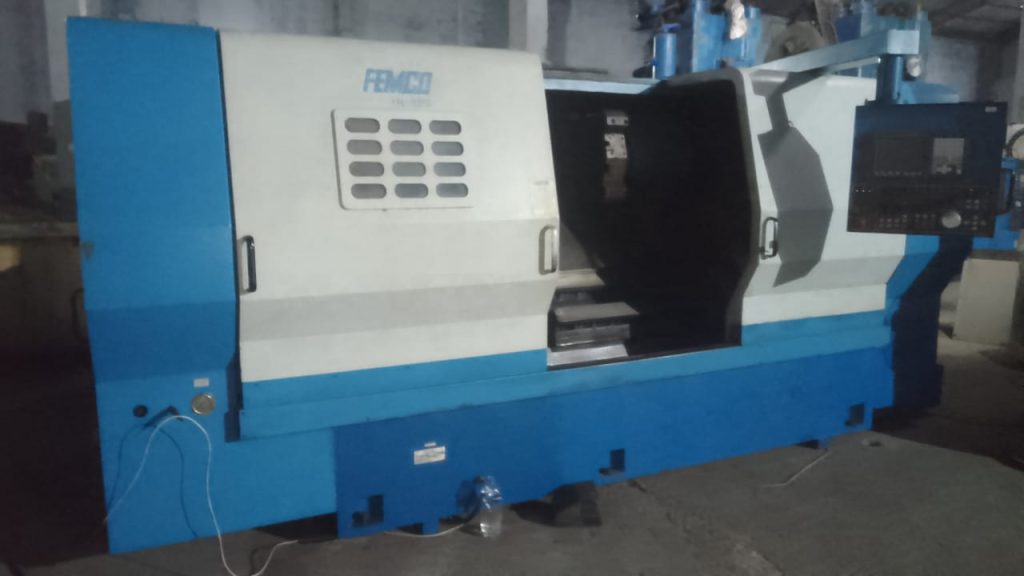

2005 FEMCO CNC LATHE
Fanuc Oi-tc
15″ 3 jaw chuck
Max Turning Diameter: 25.4″
Max Turning Length: 42.12″
Max Bar Capacity: 4.65″
Swing Over Bed: 28.4″
Distance Between Centers: 46.4″
Travel X Axis Travel: 13.4″
Travel Z Axis Travel: 47.6″
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM
Spindle Nose: A2-11
Spindle Bore: 5.2″
Spindle Speed: 25-2500 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock Body Travel: 14.3″
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-5
250mm Dia 3 Jaw Chuck,
Tail Stock,.
CNC LATHE MACHINE
1996 LEADWELL GTC 25 CNC LATHE
With Fanuc 0T Control.
10 Station Turret
Max Turning Dia 300mm.
Max Turning Length 675mm.
Distance Spindle Face to Tailstock 830mm.
Traverses X = 175mm
Z = 675mm.
Max Bar Capacity 65mm.
250mm Dia 3 Jaw Chuck,
Tail Stock,.
